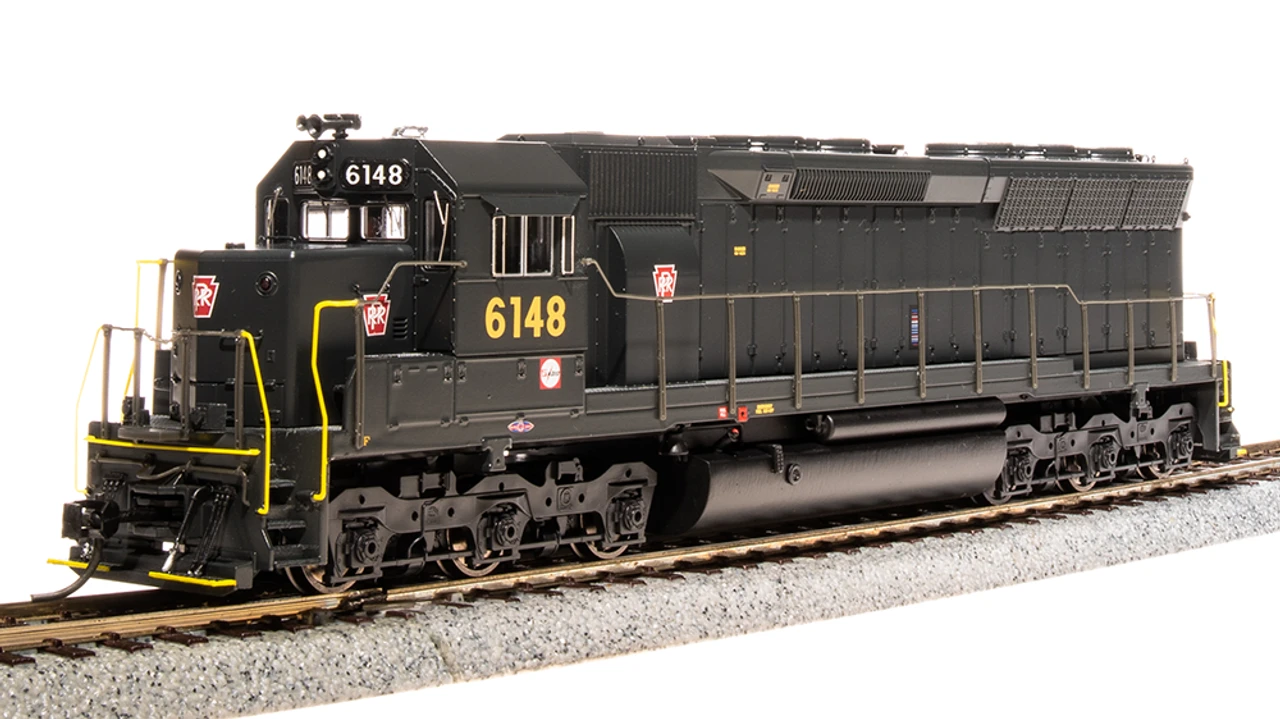

Broadway Limited 4290 – EMD SD45 W/ Paragon4 Sound/DC/DCC Pennsylvania (PRR) 6157 – HO Scale

NOTE: Image represents the paint scheme only. See listing for actual road number



Built on the same frame as the SD40, SD38 and several other EMD staples, EMD produced 1,260 SD45s between Decembers 1965 and 1971.  These freight haulers sported EMD’s 645E3 20-cylinder engine which had 3,600HP output.  EMD’s SD45s served on the Burlington Northern, Southern Pacific, Santa Fe, Pennsylvania, Great Northern, UP, NP and many other railroads.  Today, locomotives are currently preserved at the GN Railway Historical Society, the St Louis Museum of Transportation, the Virginia Museum of Transportation, the Utah State Railroad Museum, the Illinois Railway Museum and the Lake Superior Railroad Museum.

In our first production, we are modeling eight railroads with prototypically accurate road numbers and paint schemes.   Each model has our newest Paragon4 Sound/DC/DCC control system featuring Rolling Thunder, and equipped with integral GoPack capacitor packs.  All of our models have road-specific details and lighting.

List of individually controllable lights in our EMD SD45 models:

• Headlight

• Rear Light

• Mars Light (SP only)

• Numberboard Lights (Front & Rear)

• Front Classification Lights

• Rear Classification Lights

• Emergency Light (SP only)

• Rotary Beacon (ATSF, BN, UP)

• Cab Light

Road-specific detail options in this production, prototypically accurate for each road name:

• Two short hood options

• Three truck sideframe options

• Three sunshade options

• Dynamic brake hatch style

• Wind Deflector/Mirror

• Cab Window Armrest type

• Cab roof antenna type and location

• Rotary beacon type/location

• Front headlight arrangement type

• Rear numberboard type

• Radiator fan type

• Four front pilot options

• Four rear pilot options

• AC on cab roof – ATSF only

• Multiple MU Receptacle arrangements

• Prototypically accurate bell placement

Broadway Limited Imports is proud to introduce Paragon4: The new benchmark for premium HO sound-equipped locomotives. These DC and DCC-Sound equipped locomotives feature the ALL-NEW Paragon4 sound and control system. Each Paragon4 locomotive comes with BLI’s own integral DCC Decoder factory installed.  Paragon4 locomotives offer Dual Mode DC and DCC operation with superb back EMF motor control, improved DC motor control, built-in capacitor pack for more reliable electrical pick-up, industry best on-board sound with Rolling Thunder functionality, Pro Lighting Mode for prototypical light control, Switcher model for precise low speed control, recordable DCC operation for automated playback, and the same excellent detail level as Broadway Limited’s Paragon3 Series models.



Paragon4 Sound & Control System Features:

• Operates in DC & DCC with improved DC speed control (use DCMaster for DC Sound)

• Built-In extra capacitance to navigate imperfect track

• Pro Lighting Mode offers individual control of all lights on model

• Switcher Mode for precise low speed control

• Record & Play Operation – Records and plays back sounds and movements once or repeatedly for automatic operation

• High Resolution Audio

• Quillable Horn for various whistle lengths and patterns

• Choice of 3 selectable Horns

• Alternate Whistle / Horn where applicable for locomotive with air horn and steam whistle – both the main whistle and alternate can be easily played

• Adjustable bell ringing interval for faster or slower bell

• Numerous user-mappable functions with available keys

• Multiple realistic passenger and crew sounds play on command

• Grade Crossing Automatic Signal

• Automatic Forward / Reverse Signal

• Prime Mover sound intensity varies with load

• Individually adjustable sound volumes for each effect

• EZ Reset Button for quick return to factory default settings

**Specifications on this page subject to change.
