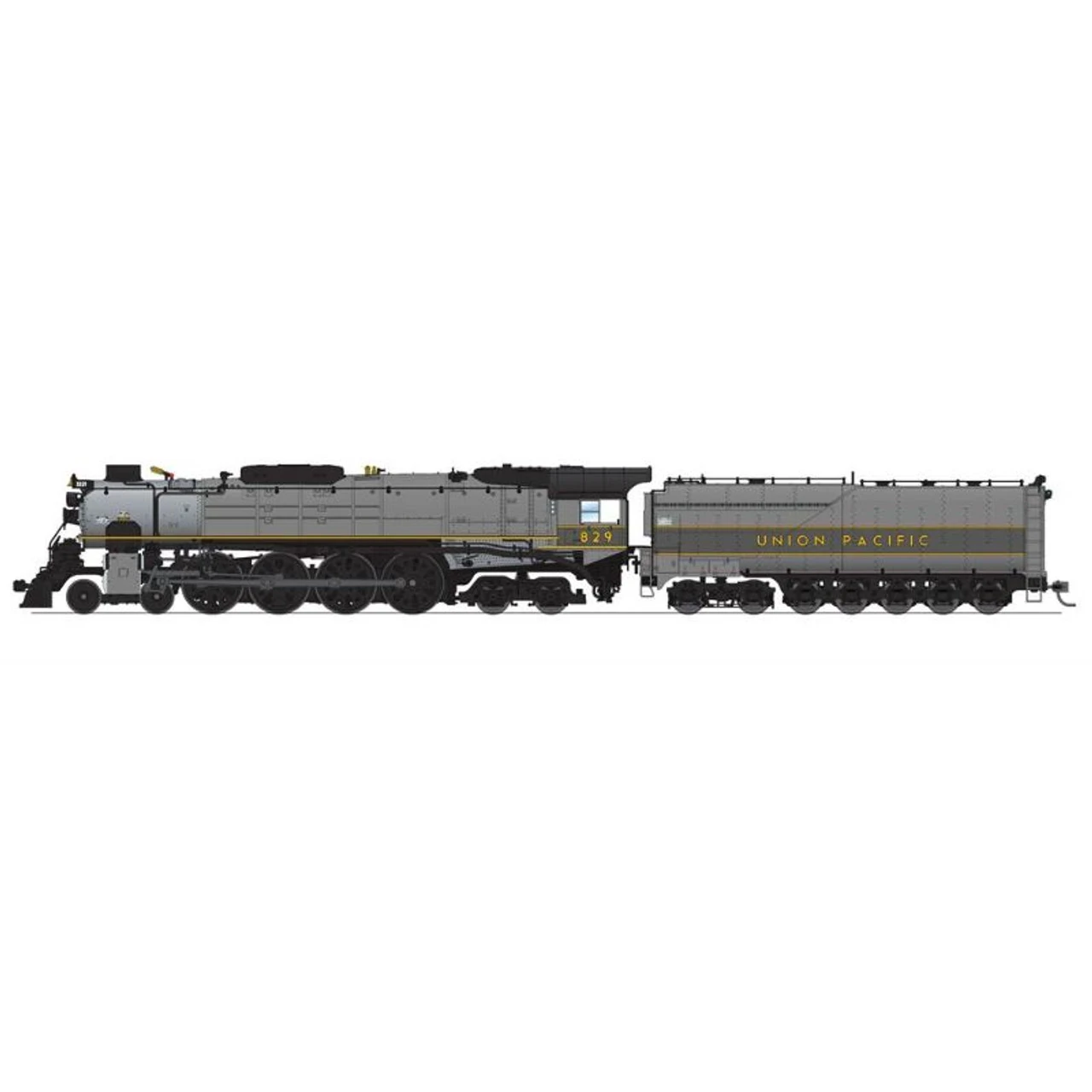

Broadway Limited 7366 – ALCO 4-8-4 FEF-3 W/ Paragon4 Sound/DC/DCC/Smoke Union Pacific (UP) 829 – HO Scale

The Northern type locomotives on the Union Pacific were built by Alco Schenectady Works in 3 classes between August 1937 and December 1944.  The first class, designated FEF-1, for Four Eight Four, comprised numbers 800-819.  Fitted with 77-inch drivers and a 300-pound boiler pressure, UP was impressed by their performance and took delivery of 15 additional 4-8-4 locomotives in Aug-Oct 1939, numbers 820-834. These locomotives were equipped with 80-inch drivers and larger 14-wheel centipede style tenders with a 23,500 gallon capacity and were class FEF-2.  In Dec 1944, 10 additional 4-8-4 locomotives were delivered, these equipped with low-backpressure double stacks, numbered 835-844, and designated FEF-3.  All three classes developed 63,800 lbs of tractive effort.

Throughout their service careers multiple modifications were made, including conversion to oil, feedwater heater systems, addition of smoke lifters (designated Wind Wings on UP drawings) and a Mars light, and replacement of stacks from singles to doubles and even triple stacks.   UP 844, the final steam locomotive delivered to UP, has been in continuous service on Union Pacific since it was built in 1944; renumbered from UP 844 to UP 8444 between June 1962 and June 1989.

In this production, BLI is modeling the FEF-2 Class and also the #844 with its Mars Light.   Notable features are listed below:

• Accurately modeled FEF-2 double stack and triple stack – prototypically accurate for each road number

• Accurately modeled turret casing

• Individual side rods

• Centipede-style oil tenders with finely detailed oil inserts.   #844 has the Heritage Fleet containment dam, other road numbers do not.

• Options for Worthington and Sellers FWH

• Wind Wings on models where prototypically accurate

• Prototypically accurate FEF-2 front end and pilot (except #844)

• Walschaerts Valve Gear

• #844 as it ran from 1989-2013, with Mars Light

Features Chart for Union Pacific FEF-2 2022 Production:


	Timeframe	Stack	FWH	Wind Wings	Mars Light	Rear Light in Tender Body Shell
7360 UP 4-8-4, Class FEF-3, #844	1989-2013	FEF-3 Double	WSA	Yes	Yes	Yes
7361 UP 4-8-4, Class FEF-2, #833	1952-1959	FEF-2 Double	WSA	Yes	Yes	No
7362 UP 4-8-4, Class FEF-2, #828	1952-1959	FEF-2 Double	WSA	Yes	Yes	Yes
7363 UP 4-8-4, Class FEF-2, #820	1952-1959	FEF-2 Double	Sellers	Yes	Yes	No
7364 UP 4-8-4, Class FEF-2, #831	1952-1959	FEF Triple	Sellers	Yes	Yes	Yes
7365 UP 4-8-4, Class FEF-2, #827	1949-1952	FEF-2 Double	Sellers	Yes	Yes	No
7366 UP 4-8-4, Class FEF-2, #829	1946-1949	FEF-2 Double	Sellers	No	Yes	No
7367 UP 4-8-4, Class FEF-2, Unlettered	1952-1959	FEF-2 Double	WSA	Yes	Yes	Yes



Broadway Limited Imports is proud to introduce Paragon4: The new benchmark for premium HO sound-equipped locomotives. These DC and DCC-Sound equipped locomotives feature the ALL-NEW Paragon4 sound and control system. Each Paragon4 locomotive comes with BLI’s own integral DCC Decoder factory installed.  Paragon4 locomotives offer Dual Mode DC and DCC operation with superb back EMF motor control, improved DC motor control, built-in capacitor pack for more reliable electrical pick-up, industry best on-board sound with Rolling Thunder functionality, Pro Lighting Mode for prototypical light control, Switcher model for precise low speed control, recordable DCC operation for automated playback, and the same excellent detail level as Broadway Limited’s Paragon3 Series models.

Paragon4 Sound & Control System Features:

• Operates in DC & DCC with improved DC speed control (use DCMaster for DC Sound)

• Built-In capacitor pack to navigate imperfect track

• Capacitor Pack automatically disabled on program track for full compatibility with JMRI Decoder Pro

• Pro Lighting Mode offers individual control of all lights on model

• Switcher Mode for precise low speed control.

• Record & Play Operation – Records and plays back sounds and movements once or repeatedly for automatic operation

• High Resolution Audio

• Quillable Whistle for various whistle lengths and patterns

• Choice of 3 selectable Horns

• Alternate Whistle / Horn where applicable for locomotive with air horn and steam whistle – both the main whistle and alternate can be easily played

• Adjustable bell ringing interval for faster or slower bell

• Numerous user-mappable functions with available keys

• Johnson Bar Sound at Direction Change

• Multiple realistic passenger and crew sounds play on command

• Grade Crossing Automatic Signal

• Automatic Forward / Reverse Signal – When activated, stopping triggers and stop whistle toot.  When moving forward from a stopped position, toots twice.  When moving in reverse. toots three times.

• Chuff sound intensity varies with load

• Individually adjustable sound volumes for each effect

• EZ Reset Button for quick return to factory default settings
