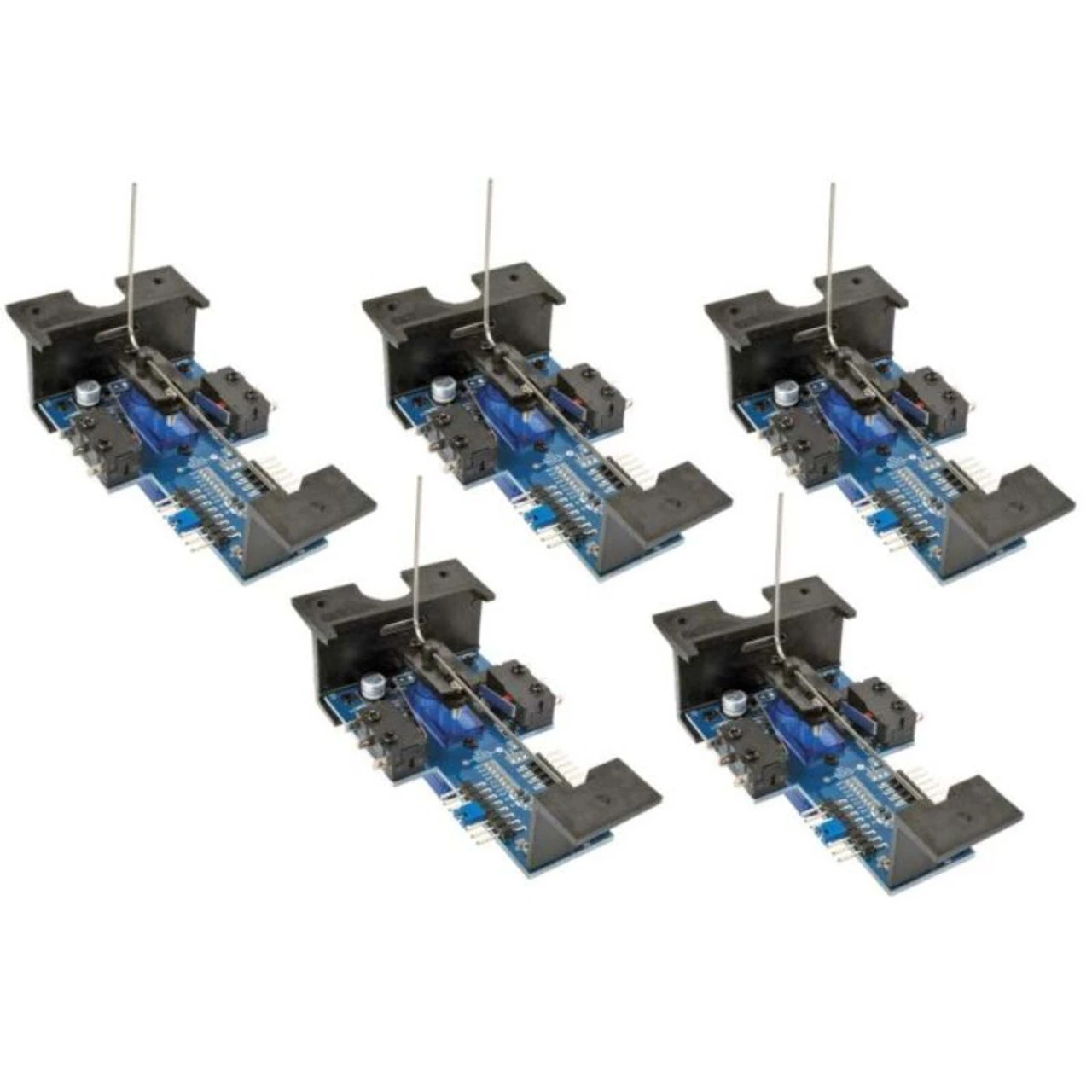

Walthers 942-502 – Walthers Layout Control System — Horizontal-Mount Switch Machine Pkg(5) – Multi Scale

Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts with this five-pack of Switch Machines! The Layout Control System is expandable at any time to grow with your layout, and can be used with DCC- or DC-power – a DCC accessory decoder is integrated into each switch machine. The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator-control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.

• Great value – 5 Layout Control System Switch Machines for one low price!
• Easy turnout control for HO, N, Z, S, and O Scale layouts
• Same features as 942-102 Switch Machines including:
  • Fully assembled, servo-based unit with approximately one second throw speed
  • Integrated DCC accessory decoder
  • Two built-in 5A switches to power turnout frogs, signals, track blocks and more
  • Self-locking mechanism for reliable positioning – servo power turns off when motion is complete
  • Adjustable throw and tension from 1/32″ to 1/2″ (1mm to 12mm) for turnouts in any scale from Z to O
  • Factory-assembled with output rod in centered position for fast & easy under benchwork mounting
  • Wire in minutes with included cables
  • Outputs for both single or bi-color LEDs
  • Connecting cable included – easily expanded with Connecting Cable (942-112, sold separately)
  • Horizontal mount measures 3-3/8″ 8.5cm tall
